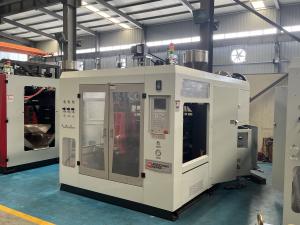

Double station extrusion blow moulding machine max production volume 5L model MP70D-1 for Disinfectant Products
Brief introduction

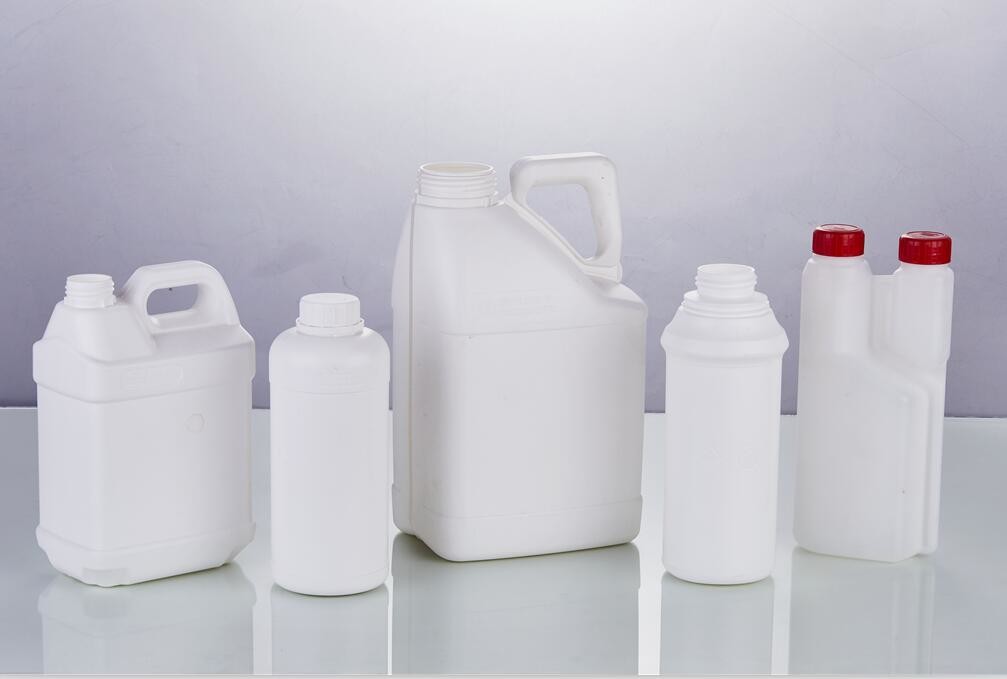

MP70D Adopt hydraulic system drive,linear transducer movement for carriage up and down,fully automatic lubrication system with self-detector function.This model is popular use for small products below 5L.
Leading Manufacturers:
-
Bekum (Germany) – Heavy-duty and high-speed EBM machines.
-
Kautex (Germany) – Known for automotive and industrial blow molding.
-
Jomar (USA) – Reliable mid-range machines.
-
Tech-Long (China) – Cost-effective solutions.
-
Shibaura Machine (Japan) – Precision EBM systems.
| PARAMETERS | MP70D-1 φ70 |
| SPECIFICATIONS |
| material | PP.PE |
| MAX container capacity L | 5 |
| number of die Set | 1 |
| machine dimension(L×W×H) M | 3.6×2.2×2.36 |
| total weight Ton | 5.5 |
| CLAMPING |
| clamping force KN | 90 |
| platen opening strokes mm | 180-480 |
| toggle stroke mm | 300 |
| Max mould size(W×H) mm | 430×370 |
| EXTRUDER UNIT | |
| screw diameter mm | 70 |
| screw L/D ratio L/D | 24 |
| (HDPE)plasticizing capacity kg/h | 75 |
| screw heating zone zone | 3 |
| screw heating power kw | 12.7 |
| fan power kw | 0.28 |
| extruder driving power kw | 18.5 |
| DIE HEAD | |
| die head heating zone zone | 3 |
| power of die heating kw | 8 |
| ENERGY-CONSUMPTION | |
| power of the electric motor kw | 9.5 |
| air pressure Mpa | 0.6-0.8 |
| total power of machine kw | 48.98 |
| average energy consumption kw | 24 |
| compression air consumption m3/min | 1 |
| cooling water consumption L/minv | 30 |
Advantage:
1. Most important for a good EBM machine is the action system and the extrusion system.
we'r using powerful hydraulic system design with imported valve and pump for stable action
Adopt China famous brand Gearbox along with Delta extrusion motor ,make sure machine runs continiously,long life
2. Heavy and stong structure,make sure machine works more faster and stable.
3. Special care for different countries.
we offer some special design for different countries,in order to matching best performance.
4. Defleshing function included
