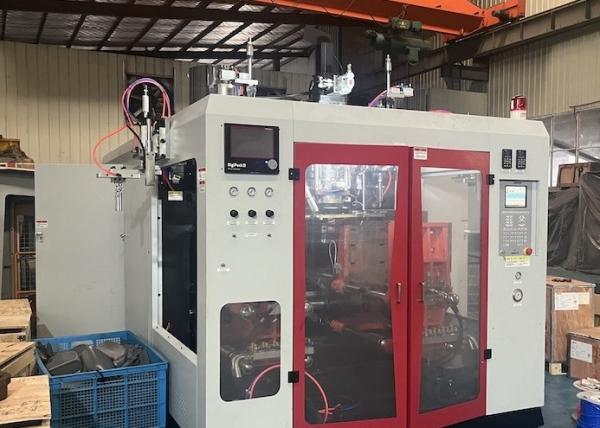

Product Description:
MP plastic blow molding machine is designed to process a variety of plastic hollow products made from high-molecule materials. It is capable of producing hollow items ranging from 5 milliliters to 100 liters in size. The range of products that can be manufactured using this machine is vast, including bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs, and auto parts, among others.
This machine not only has the ability to blow different materials such as PE, PP, PVC, PA, PC, PS, and EVA but also ensures a flawless manufacturing process.
Features:
a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.
b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.
c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.
d) Improved design of hydraulic oil loop. Power saving, rapid and stable.
e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.
f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.
g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.
h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.
i) This machine has two blowing functions of straight cutting and oblique cutting.
Technical Parameters:
System Item
Unit: Basic Parameter
Basic Specifications
- Applicable materials: PE, PP, PVC, PA...
- Max product volume: 10 L
- Number of heads: 1, 2, 3, 4
- Machine dimension (LxWxH): 4x2.3x2.5 meters
- Machine weight: 8.2 tons
Mould Clamping System
- Mould clamping force: 150 KN
- Platen opening strokes: 220-620 mm
- Plate stroke: 540 mm
- Max mould sizes (WxH): 520x460 mm
Extrusion System
- Screw diameter: 80 mm
- Screw slenderness ratio (L/D): 24
- Plasticizing ability (HDPE): 90 KG/H
- Screw heating stage/zone: 4
- Screw heating power: 15.85 KW
- Screw fan power: 0.28 KW
- Extrusion motor power: 30 KW
Head
- Head heating stage/zone: 3
- Head heating power: 10 KW
Energy Consumption
- Total machine power: 80 KW
- Oil motor power: 18.7 KW
- Air pressure: 0.6-0.8 MPA
- Compression air volume: 1.5 M3/min
- Cooling water volume: 40 L/min
Applications:
MEPER MP80D Extrusion Molding Machine is a versatile and high-quality equipment suitable for various product application occasions and scenarios. With its exceptional features and specifications, this machine is ideal for a wide range of industries and production needs.
One of the key attributes of the MEPER MP80D is its suitability for manufacturing products using materials such as PE, PP, PVC, and PA. This makes it perfect for applications in industries that require these materials for their production processes.
Moreover, the machine's plasticizing ability, especially with HDPE, reaching 90, ensures efficient and precise molding of products. Whether you need to create intricate designs or simple shapes, the MEPER MP80D can deliver outstanding results.
The extrusion molding machine is equipped with 1 to 4 heads, providing flexibility in production capabilities. Whether you require a single cavity or multiple cavities, this machine can meet your specific needs effectively.
For scenarios that demand a 2 cavity blow molding machine or a fully automatic molding machine, the MEPER MP80D is an excellent choice. Its automatic extrusion blow molding capabilities streamline the production process, enhancing efficiency and productivity.
Manufactured in China, this machine meets the highest quality standards and holds CE/ISO9001:2008 certifications. Customers can rest assured of its reliability and performance.
With a minimum order quantity of 1 set and negotiable pricing, the MEPER MP80D offers cost-effective solutions for businesses of all sizes. The standard packaging and delivery time of 25-35 work days ensure a smooth and convenient purchasing experience.
Customers can choose from payment terms such as L/C or T/T, providing flexibility in completing transactions. Additionally, with a supply ability of 100 sets per month, the MEPER MP80D guarantees consistent availability and support for your production needs.
